GraphLib::WeightedUndirectedGraph< D, I, W > Class Template Reference

Undirected graph with weighted edges. More...

#include <graphs.h>

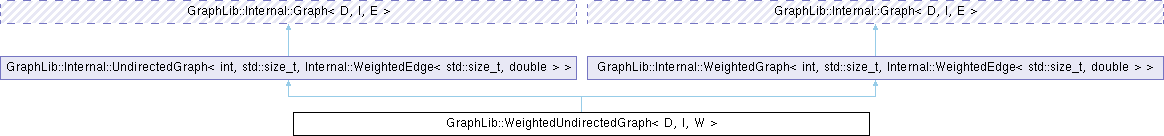

Inheritance diagram for GraphLib::WeightedUndirectedGraph< D, I, W >:

Additional Inherited Members
Public Types inherited from GraphLib::Internal::Graph< D, I, E >
using	data_type = D
	Alias for the data type of nodes.
using	id_type = I
	Alias for the node ID type.
using	edge_type = E
	Alias for the edge type.
Public Member Functions inherited from GraphLib::Internal::UndirectedGraph< int, std::size_t, Internal::WeightedEdge< std::size_t, double > >
bool	is_directed () const override
	Indicates that this graph is undirected.
void	remove_edge (I from_id, I to_id) override
	Removes an undirected edge between two nodes.
Public Member Functions inherited from GraphLib::Internal::Graph< D, I, E >
virtual	~Graph ()=default
	Virtual destructor for safe polymorphic use.
constexpr bool	operator== (const Graph &other) const
	Equality comparison between graphs.
bool	is_full ()
	Checks if the graph has reached the maximum number of nodes.
bool	node_exists (const id_type id) const
	Check if a node with the specified ID exists.
id_type	node_count () const
	Get the number of nodes in the graph.
size_t	edge_count () const
	Get the number of edges in the graph.
std::unordered_set< id_type >	get_nodes () const
	Retrieve the set of all node IDs in the graph.
const data_type &	get_node_data (const id_type id) const
	Access the data associated with a node by its ID.
const std::set< id_type >	get_neighbors (const id_type id) const
	Get neighbors (adjacent node IDs) of a given node.
bool	has_edge (const id_type from_id, const id_type to_id) const
	Check if an edge exists between two nodes.
edge_type	get_edge (const id_type from_id, const id_type to_id) const
	Retrieve the edge information between two nodes.
std::set< edge_type >	get_edges (const id_type from_id) const
	Get all edges originating from a given node.
void	print_data_map () const
	Prints the contents of the data_map_ to standard output.
void	print_adjacency_list () const
	Outputs the graph as an adjacency list to the given stream.
void	print_with_data (std::ostream &os) const
	Outputs the graph as an adjacency list to the given stream but with its data.
void	print_adjacency_matrix () const
	Prints the adjacency matrix of the graph.
id_type	add_node (const data_type data)
	Add a new node with the given data.
id_type	add_node ()
	Add a new node with default data.
void	add_node_with_id (const id_type id, const data_type data)
	Insert a new node with a specified ID and associated data.
void	add_node_with_id (const id_type id)
	Insert a new node with a specified ID.
void	remove_node (const id_type id)
	Remove a node by ID.
void	set_node_data (const id_type id, const data_type data)
	Update the data of a node.
Public Member Functions inherited from GraphLib::Internal::WeightedGraph< int, std::size_t, Internal::WeightedEdge< std::size_t, double > >
bool	is_weighted () const override
	Indicates that this graph is weighted.
void	add_edge (const I from_id, const I to_id) override
	Adds a weighted edge from one node to another with default weight.
E::weight_type	get_edge_weight (const I from_id, const I to_id) const
	Retrieves the weight of the edge from from_id to to_id.
E::weight_type	get_total_weight () const
	Calculates the total weight of all edges in the graph.
Protected Member Functions inherited from GraphLib::Internal::Graph< D, I, E >
virtual void	add_edge_impl (const id_type from_id, const edge_type edge)
	Helper to add an edge including reverse edge if undirected.
Protected Attributes inherited from GraphLib::Internal::Graph< D, I, E >
AdjacencyList< id_type, edge_type >	adj_list_ {}
	Stores edges as adjacency list.
std::unordered_map< id_type, data_type >	data_map_ {}
	Maps node IDs to node data.
id_type	highest_id_ {}
	IDs start at 1 to avoid off-by-one errors when giving node count.

Detailed Description

template<GraphLib::Internal::valid_data_type D = int, GraphLib::Internal::valid_id_type I = std::size_t, GraphLib::Internal::valid_weight_type W = double>
class GraphLib::WeightedUndirectedGraph< D, I, W >

Undirected graph with weighted edges.

Represents an undirected graph where edges have weights of type W.

Template Parameters

D	Type of data stored in each vertex. Must satisfy valid_data_type.
I	Type used for node IDs. Must satisfy valid_id_type.
W	Type of edge weights. Must satisfy valid_weight_type.

Inherits from:

• UndirectedGraph<D, I, WeightedEdge<I, W>> for undirected graph behavior.
• WeightedGraph<D, I, WeightedEdge<I, W>> for weighted edge handling.

Definition at line 98 of file graphs.h.

---

The documentation for this class was generated from the following file:

• include/GraphLib/graphs.h
